Deep Hole Drilling is a specialized machining process used to create holes with high depth-to-diameter ratios. Among the various techniques employed, gun drilling stands out as a highly efficient method for producing deep and straight holes with exceptional precision. This article delves into the intricacies of gun drilling, exploring its differences from other drilling methods, optimal specifications, equipment used, and how to find the right gundrilling machines for specific applications.
Deep Hole Drilling encompasses several techniques, with gun drilling and BTA (Boring and Trepanning Association) drilling being two of the most prominent. Understanding their differences is crucial for selecting the appropriate method for a given application.
Mechanism: Utilizes a long, thin gun drill with a V-shaped tip. The drill is fed into the workpiece, while high-pressure coolant is supplied through the drill’s body, flushing chips away and lubricating the cutting edge.
Chip Evacuation: ** Chips are flushed out through the V-shaped flute of the drill, along with the coolant.**
Depth-to-Diameter Ratio: Excels at achieving high depth-to-diameter ratios, typically ranging from 20:1 to 300:1, making it ideal for deep hole drilling applications.
Hole Diameter: Generally used for smaller hole diameters, typically ranging from 1 mm to 50 mm.
Accuracy: Known for producing highly accurate and straight holes with excellent surface finish.
Applications: Commonly used in the aerospace, medical, automotive, and tool & die industries for applications requiring precise, deep holes, such as drilling injection nozzles, medical implants, and mold components.
Mechanism: Employs a hollow drill with multiple cutting edges. The drill is surrounded by a hollow tube (the BTA tool), through which high-pressure coolant is supplied to flush chips and lubricate the cutting edges.
Chip Evacuation: Chips are flushed out through the hollow center of the drill and the BTA tool.
Depth-to-Diameter Ratio: Typically used for lower depth-to-diameter ratios compared to gun drilling, generally up to 20:1 or 30:1.
Hole Diameter: Capable of producing larger hole diameters than gun drilling, typically ranging from 20 mm to 200 mm.
Accuracy: Also provides good accuracy and surface finish, although typically not as high as gun drilling in deep holes.
Applications: Widely used in the oil and gas, energy, and heavy equipment industries for applications such as drilling large diameter holes in pipes, shafts, and other components.
Achieving optimal results in gun drilling requires careful consideration of various process parameters. Here are some key specifications to consider:
Drill Diameter: Selecting the appropriate drill diameter is crucial for achieving the desired hole size and maintaining structural integrity, especially in deep hole drilling applications.
Drill Geometry: The V-shaped tip angle, flute length, and flute shape significantly impact chip evacuation, cutting forces, and surface finish. The tip angle is typically 118°, 130°, or 140°. The choice depends on the workpiece material and desired hole quality.
Cutting Speed: The speed at which the drill rotates, measured in surface feet per minute (SFM) or meters per minute (m/min). Optimal cutting speed depends on the workpiece material and drill diameter. For example, when deep hole drilling in steel, a cutting speed of 100-150 SFM is common.
Feed Rate: The rate at which the drill advances into the workpiece, measured in inches per revolution (IPR) or millimeters per revolution (mm/rev). Optimal feed rate depends on factors like cutting speed, drill diameter, and workpiece material. For instance, when deep hole drilling in aluminum, a feed rate of 0.005-0.015 IPR might be used.
Coolant Type: High-pressure coolant is essential for effective chip evacuation, lubrication, and heat dissipation. The choice of coolant (oil-based, water-soluble, or synthetic) depends on the workpiece material and desired hole quality. For example, oil-based coolants are often used for deep hole drilling in metals due to their excellent lubricating properties.
Coolant Pressure: Typically ranges from 300 to 1000 PSI (pounds per square inch) or higher, depending on the depth and diameter of the hole. Higher pressures are generally required for deep hole drilling applications to ensure effective chip evacuation.
Machine Rigidity: A rigid and stable machine is essential to minimize vibrations and ensure accurate hole alignment, especially in deep hole drilling operations.
Spindle Runout: Minimizing spindle runout (eccentricity) is crucial for maintaining drill concentricity and preventing hole deviation.
Proper Support: Adequate support of the workpiece is essential to prevent deflection and vibration during the deep hole drilling process.
Secure Fixturing: The workpiece must be securely fixtured to the machine table to prevent movement and ensure accurate hole positioning.

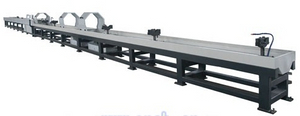

Gun drilling requires specialized equipment designed to handle the unique challenges of deep hole drilling. Here’s a breakdown of the essential components:
Types: Available in various configurations, including vertical, horizontal, and CNC (Computer Numerical Control) models. CNC machines offer greater precision and automation for complex deep hole drilling operations.
Key Features:
Rigid construction to minimize vibrations.
High-precision spindle with low runout.
Powerful coolant delivery system capable of generating high pressures.
Automatic feed mechanism for consistent and controlled drilling.
Optional features like tool changers, chip conveyors, and machine enclosures.
Material: Typically made from high-speed steel (HSS), cobalt alloys, or solid carbide, chosen based on the workpiece material and drilling conditions.
Design:
V-shaped Tip: Facilitates chip formation and evacuation.
Flutes: Helical grooves that carry chips away from the cutting zone.
Shank: The portion of the drill that is clamped in the machine spindle.
Drive Mechanism: May feature a straight shank, tapered shank, or other drive mechanism for secure chucking.
High-Pressure Pump: Generates the high-pressure coolant required for effective chip evacuation and lubrication.
Filtration System: Removes contaminants from the coolant to maintain its effectiveness and extend its lifespan.
Coolant Tank: Stores the coolant and provides a reservoir for recirculation.
Chuck: Secures the gun drill in the machine spindle. Types include hydraulic chucks, collet chucks, and Jacobs chucks.
Tooling: May include bushings, guides, and other accessories to support the gun drill and ensure accurate alignment.
Chip Conveyor: Transports chips away from the machining area for disposal.
Chip Winder: (Optional) Winds long, continuous chips into neat bundles for easier handling.
Selecting the right gundrilling machine is crucial for achieving optimal results in your deep hole drilling applications. Here are some factors to consider when searching for the perfect machine:
Hole Depth and Diameter: Determine the maximum depth and diameter of the holes you need to drill.
Workpiece Material: Consider the type of material you will be drilling (e.g., steel, aluminum, titanium).
Production Volume: Evaluate your production volume to determine the level of automation and cycle time requirements.
Desired Hole Quality: Define the required accuracy, surface finish, and straightness of the holes.
Spindle Power and Torque: Ensure the machine has sufficient power and torque to handle your most demanding deep hole drilling applications.
Spindle Speed Range: Select a machine with a wide spindle speed range to accommodate different drill diameters and materials.
Feed Rate Range: Choose a machine with a suitable feed rate range for your specific deep hole drilling needs.
Coolant System: Verify that the machine’s coolant system can deliver the required pressure and flow rate for effective chip evacuation.
Machine Size and Configuration: Consider the machine’s footprint, weight, and configuration (vertical, horizontal, CNC) to ensure it fits your facility and workflow.
Automatic Feed: Look for a machine with an automatic feed mechanism for consistent and controlled drilling.
CNC Control: CNC machines offer greater precision, automation, and flexibility for complex deep hole drilling operations.
Tool Changer: (Optional) A tool changer can significantly increase productivity by automatically changing drills.
Chip Conveyor: A chip conveyor helps keep the machining area clean and improves operator safety.
Machine Enclosure: A machine enclosure contains coolant and chips, improving safety and reducing cleanup time.
Reputation: Research the supplier’s reputation in the industry. Look for reviews and testimonials from other customers.
Experience: Choose a supplier with extensive experience in deep hole drilling and gun drilling.
Support: Ensure the supplier offers comprehensive support, including installation, training, and after-sales service.
Parts Availability: Verify that spare parts are readily available to minimize downtime.
Initial Investment: Consider the upfront cost of the gundrilling machine.
Operating Costs: Factor in ongoing costs such as electricity, coolant, and tooling.
Return on Investment: Evaluate the potential cost savings and productivity gains offered by the machine.
By carefully considering these factors, you can find the perfect gundrilling machine to meet your deep hole drilling needs and achieve optimal results in your specific applications. Remember to consult with experienced suppliers like DCarbide (https://www.dcarbide.com/), who can provide valuable guidance and support throughout the selection process.
